Smart Tweezers ST5: Innovation for Surface Mount Devices
Combination RLC Multimeter with High Precision Tweezers
Digital multimeter featuring sorting, semi-automatic offset subraction, diode and continuity tests of SMD components and Li-Ion batteries with USB charger!
The Only Device Needed for Sorting, Troubleshooting or Debugging SMD Components

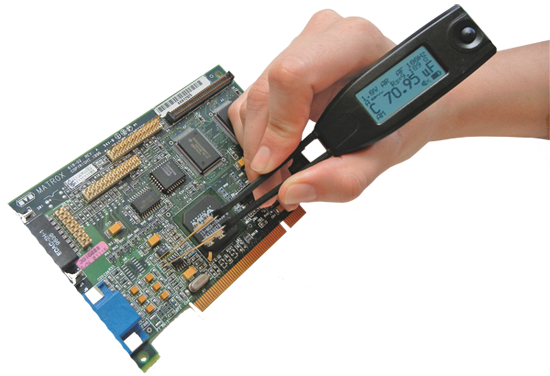

Smart Tweezers are a lightweight handheld tool that incorporates an LCR meter, precision tweezers, and an LCD, creating the perfect tool for testing and troubleshooting complex circuits, as well as testing and identifying Surface Mount Devices. The gold-plated tweezer tips allow the Smart Tweezers device to give high accuracy readings of resistance, capacitance, and inductance, as well as automatically indentifying components.
Testing with the Smart Tweezers Device
Due to small sizes, lack of wire leads, or unclear markings, most SMDs are hard to test, sort and identify. Smart Tweezers are the answer to all these problems. By simply squeezing the tweezer tips together to hold a component, the device with identify what component it holds, then automatically selects the best test ranges and frequencies for the highest accurate measurements. Not only can the device measure loose components, but also those already mounted. By simply testing a mounted component the same way as a loose component, Smart Tweezers can also warn the user if an open circuit is present.
Fully Automated and Manual Functions
Smart Tweezers make short and efficient work for anything to do with surface mount devices. When a component is placed between the two tines of the tweezers, the device automatically selects L, C or R, the proper test range and test frequencies. When the nearly instantaneous measurement is completed, the information is relayed to the LCD screen, displaying the component type, and other detailed analysis such as Z and ESR. When an SMD needs to be tested under certain parameters, multiple manual functions are available. A 4 wire Kelvin probe allows Smart Tweezers to guarantee low capacitance and resistance offset throughout measurements.
Easy to Use and Compact
Designed ergonomically, and easily used with one hand (left or right), the simplicity of the device allows users to easily focus on the task at hand. Troubleshooting, testing and sorting SMD components becomes quick and easy, thus cost effective. The devices Li-Ion battery is charged by USB plug, allowing Smart Tweezers to be able to charge nearly anywhere.
Additional Functions
- Varied Component Testing Smart Tweezers can test all types of components, including ceramic, as well as secondary components of Dissipation Factor (D), Quality Factor (Q). Smart Tweezers also allow the user to change certain aspects of testing for a more detailed analysis of the component in question.
- ESR mode (Equivalent Series Resistance) helps to better recognize the intrinsic resistance, generally found across selected frequencies in capacitors.
- Testing Diodes A diode mode for testing diode polarity as well as indication if the diode is short.
- Continuity Testing Smart Tweezers can perform a continuity test to help locate shortened conductors on a pre-assembled circuit. A beeper will sound if the measurement is below threshold or if an open circuit is present.
- Manual modes Simple setting changes allow users specific circuit parameters L,C,R,Z or ESR. This mode also helps identification for in-circuit testing
- Test Signals In different situations, a different test signal is needed. Smart Tweezers offers output from 0.25 to 1.0 Vrms for best test precision. Ie: in-circuit measurements or loose leaded ceramic capacitators.
- Component sorting For component sorting, a tolerance mode can be selected. Measurements are displayed while a 'beep' can be heard when reading is below threshold.
- Offsets A Math null function allows the user to store a pre-measured offset, improving measurement precision
